Electrofusion Reducer

Rainson HDPE Electrofusion Reducer is a type of pipe fitting, which is used to connect two different sizes of pipeline. This pipe fitting system is essential for gas and water distribution. HDPE Electrofusion Reducers are joined by electrofusion welding, which makes it very safe and accurate. Other advantages of this fitting include their ease of installation, which reduces time and effort. HDPE Electrofusion Reducer, its other big advantage is that the common materials used under it are highly precision which provide better corrosion quality than other materials. Therefore, this pipe fitting is a long lasting and robust solution suitable for a variety of applications.

Inquiry Now

Key Specifications

Material PE100 SDR 11 – 17

Standard EN 12201-3, EN 1555-3

Download Brochure

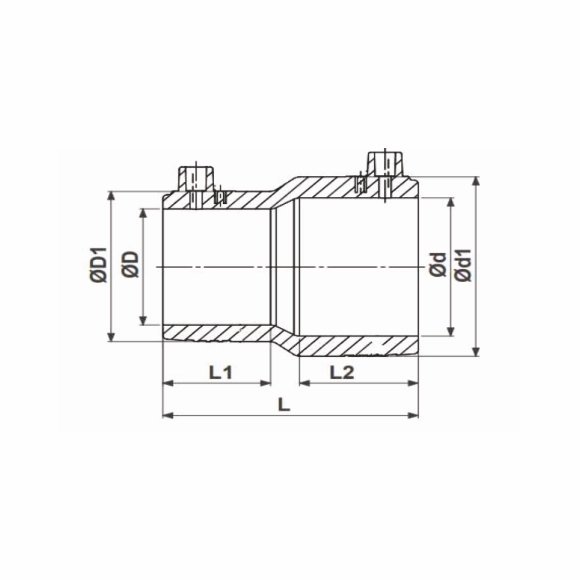

Product Code	Ød (mm)	Ød1 (mm)	ØD (mm)	ØD1 (mm)	L -LENGTH (mm)	L1 Ød (mm)	L1 ØD (mm)
EFR6350	63	80	50	65	106	50	45
EFR7563	75	95	63	80	115	55	50
EFR9063	90	115	63	81	138	65	50
EFR9075	90	113	75	96	131	65	54
EFR11063	110	135	63	80	164	72	50
EFR11075	110	138	75	96	158	73	55
EFR11090	110	136	90	114	153	72	65
EFR12590	125	150	90	112	176	78	65
EFR125110	125	149	110	135	164	78	72
EFR14090	140	166	90	113	194	83	65
EFR140110	140	166	110	135	181	83	72
EFR140125	140	166	125	150	173	83	78
EFR16090	160	184	90	112	212	90	65
EFR160110	160	184	110	135	207	90	72
EFR160125	160	182	125	148	199	90	78
EFR160140	160	187	140	167	191	90	83
EFR18090	180	208	90	112	229	97	65
EFR180110	180	209	110	135	224	95	72
EFR180125	180	212	125	151	214	95	79
EFR180140	180	208	140	166	206	95	80
EFR180160	180	210	160	187	202	95	90
EFR20090	200	228	90	113	246	100	56
EFR200110	200	228	110	135	244	110	72
EFR200125	200	230	125	151	235	98	78
EFR200140	200	230	140	167	226	102	81
EFR200160	200	230	160	187	217	110	90
EFR200180	200	229	180	212	221	102	90
EFR225200	225	262	200	230	239	110	95
