Rainson HDPE Spigot 45 Elbow is a specialized pipe fitting designed for High-Density Polyethylene (HDPE) piping systems. Its unique 45-degree bend allows for a gradual change in the direction of the pipeline, providing a smooth and efficient flow of fluids. The spigot end of the 45 elbow is designed to fit into the corresponding socket of an HDPE pipe, creating a secure and leak-free joint through heat fusion techniques. Crafted from high-quality HDPE material, the spigot 45 elbow boasts excellent strength, chemical resistance, and UV resistance, making it suitable for a wide range of applications, such as water distribution, sewer systems, agricultural irrigation, and industrial processes. Its durable construction ensures reliable performance, even in harsh environments.

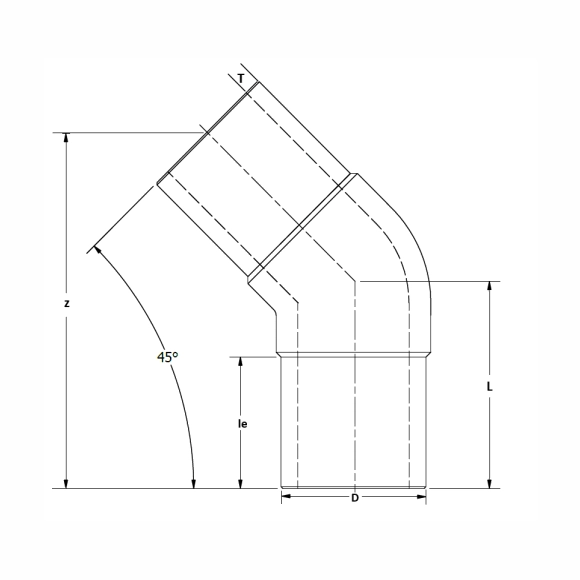

| D (mm) | Product Code | le (mm) | L (mm) | Z (mm) |
|---|---|---|---|---|
| 63 | HSSE63 45" | 63 | 94 | 160 |
| 75 | HSSE75 45" | 70 | 98 | 176 |
| 90 | HSSE90 45" | 79 | 113 | 202 |
| 110 | HSSE110 45" | 82 | 124 | 220 |
| 125 | HSSE125 45" | 87 | 133 | 239 |
| 140 | HSSE140 45" | 92 | 135 | 250 |
| 160 | HSSE160 45" | 98 | 145 | 273 |
| 180 | HSSE180 45" | 105 | 148 | 290 |
| 200 | HSSE200 45" | 112 | 155 | 311 |
| 225 | HSSE225 45" | 120 | 177 | 304 |
| 250 | HSSE250 45" | 130 | 188 | 331 |
| 280 | HSSE280 45" | 139 | 235 | 425 |
| 315 | HSSE315 45" | 150 | 255 | 450 |
