Rainson HDPE Spigot Y Tee is an essential pipe fitting used in High-Density Polyethylene (HDPE) piping systems. This fitting features a Y-shaped design, allowing one pipeline to branch smoothly into two directions at an angle, which helps reduce flow resistance and pressure loss compared to standard tees. The spigot ends are designed to fit precisely into the corresponding HDPE pipe sockets, forming a strong, leak-proof joint through reliable heat fusion techniques. Manufactured from premium-quality HDPE material, the spigot Y tee offers excellent mechanical strength, chemical resistance, and UV stability. It is widely used in applications such as water supply networks, drainage and sewer systems, irrigation lines, and various industrial piping systems. Its durable construction and efficient flow characteristics ensure long-lasting performance and uninterrupted fluid movement within the pipeline.

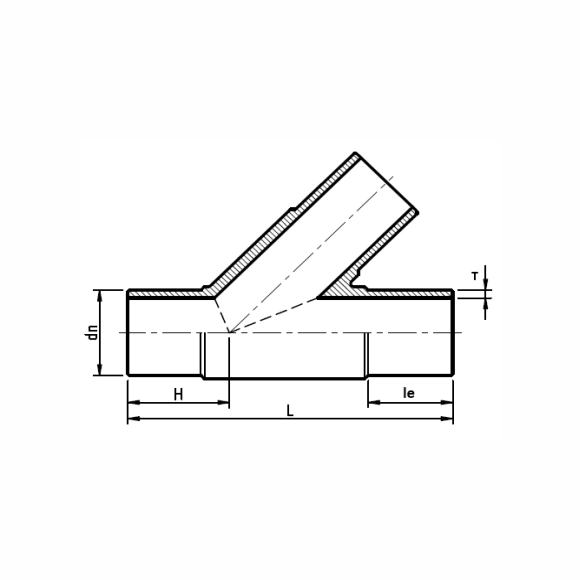

| d1 (mm) | Product Code | dn | H (mm) | le (mm) | l (mm) |
|---|---|---|---|---|---|
| 63 | HSY63 | 63 | 89 | 63 | 249 |
| 75 | HSY75 | 75 | 99 | 70 | 279 |
| 90 | HSY90 | 90 | 108 | 79 | 313 |
| 110 | HSY110 | 110 | 121 | 82 | 366 |
| 125 | HSY125 | 125 | 135 | 87 | 404 |
| 140 | HSY140 | 140 | 154 | 92 | 463 |
| 160 | HSY160 | 160 | 166 | 98 | 521 |
| 180 | HSY180 | 180 | 181 | 105 | 562 |
| 200 | HSY200 | 200 | 196 | 112 | 618 |
| 225 | HSY225 | 225 | 230 | 120 | 683 |
| 250 | HSY250 | 250 | 265 | 129 | 720 |
| 280 | HSY280 | 280 | 292 | 139 | 820 |
| 315 | HSY315 | 315 | 328 | 150 | 915 |
