Spigot Elbow

Rainson HDPE Spigot Elbow is a type of pipe fitting designed for use in High-Density Polyethylene (HDPE) piping systems. It features a 90-degree bend, allowing for changes in the direction of the pipeline while maintaining a smooth and continuous flow of fluids. Manufactured from premium-grade HDPE material, the spigot elbow offers excellent strength, chemical resistance, and UV resistance, making it suitable for a wide range of applications in water supply, wastewater management, industrial processes, and more.

Key Specifications

Material PE100 SDR 11 – 17

Standard EN 12201-3, 1555-3

Inquiry Now Download Brochure

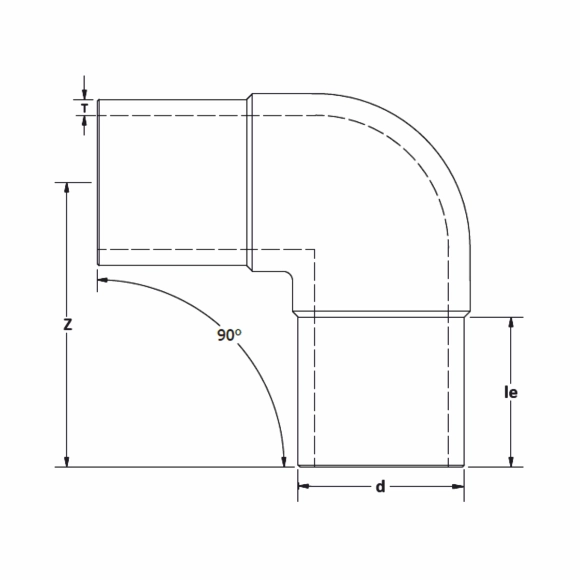

Ød (mm)	Product Code	D (mm)	le (mm)	Z (mm)
63	HSE63	63	63	109.5
75	HSE75	75	70	117.5
90	HSE90	90	79	139
110	HSE110	110	82	158
125	HSE125	125	87	175.5
140	HSE140	140	92	188
160	HSE160	160	98	200
180	HSE180	180	105	222
200	HSE200	200	112	238
225	HSE225	225	120	257.5
250	HSE250	250	130	285
280	HSE280	280	139	340
315	HSE315	315	150	370
355	HSE355	355	165	401
400	HSE400	400	180	451
